UWATEC Galileo Sol

This was the challenge undertaken by our engineering team at UWATEC. The result is Galileo, a completely innovative and new platform created by UWATEC, the dive industry leader since our first Aladin computer was introduced close to 20 years ago. Galileo by UWATEC is as revolutionary for diving as Galileo Galilei's discoveries were for XVIIth century science. And science is the essence of Galileo.

Galileo is a new state-of-the-art computer offering the ultimate in features and technological innovation for an extraordinary underwater experience.

• Exclusive POLAR Heart Rate Monitoring System

• Full-Tilt Digital Compass with Bearing Memory

• Extra large Dot-Matrix Display

• Hoseless Gas Integration with True Remaining Bottom Time Calculation

• Predictive Multi Gas algorithm

• Updatable Processor that can be Reprogrammed via Infrared by the User

• EN Certification to 1082 feet (330 meters)

• User-replaceable battery with tissue loading memory

• Plus all the UWATEC Core Technological Features for which we are renowned

Full-Tilt Digital Compass with Bearing Memory: A powerful navigational system with integrated digital compass that remains accurate regardless of inclination, a diving industry first. You can set a bearing to navigate to and from a desired destination both on the surface and underwater.

 Extra-large Dot Matrix Display and Huge Memory: View pictures and charts during the dive; store images of dive sites and upload tables or messages for easy communication.

   PDIS (Profile Dependent Intermediate Stops) optimizes your dive in complete security.  The PDIS option calculates an intermediate stop based on how much nitrogen uptake your body has endured, taking into account your current dive, previous dives and breathing mixes.

Alarms and warnings displayed in text in the language of choice: You will never misunderstand an essential beep underwater because Galileo spells it out. You decide. Warnings can be visual, audible or both.

Galileo’s user interface is as easy to use, program and view as a cell phone: Menus, settings and functions are in your language of choice.

Infrared technology and PC download capability: Lets you continue your dive experience once you get out of the water. You can log, organise, analyse and print details of each dive and even compare your dive profile to your buddy’s.

Predictive Multi Gas (Available as upgrade): Allows you to enjoy the full benefits of carrying high oxygen concentration mixes in addition to your main breathing gas. Our algorithm predicts the switch to the new mix and includes it in the deco calculation plus prompts you to use it at the correct depth.

Exclusive Heart Rate Monitoring System (Available as upgrade): Galileo is the first and only dive computer to have an integrated heart rate monitor, incorporating the heartbeat into the workload, and then tailoring the decompression calculations to your dive.

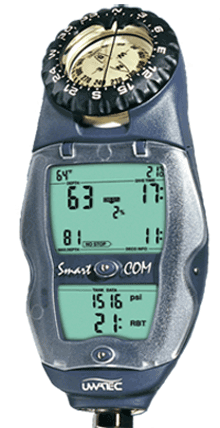

The air-integrated Smart COM featuring Smart technology shares all features with the Smart PRO and adds information on diver‘s air consumption and remaining bottom time via the traditional high pressure hose.
ALGORITHM & SAFETY
Adaptive algorithm (ZH-l8 ADT MB). Micro bubble Suppression Technology.
NITROX & GAS INTEGRATION
Nitrox compatibility 21 - 100%. User selectable Nitrox mix in 1% increments for full flexibility.
True Remaining Bottom Time (RBT) calculation (patented). Combines breathing data, depth, temperature and decompression forecast in a powerful calculation that allows the diver to perform a safe ascent, including all ascents and decompression obligations, and to reach the surface with the predetermined tank reserve (user adjustable between 290 and 1015 psi).
4350 psi compatibility.
FUNCTIONS & DISPLAY
Displays all essential dive information. The large display presents logically arranged information clearly at a glance.
Numerous warnings. Increased safety and vigilance by audible maximum depth alarm, fast ascent alarm and many more (can be selectively turned off).
Gauge mode. Technical depth gauge function to 131 yards depth.
Dive planner.
User adjustable backlight display.
Replaceable screen protector.

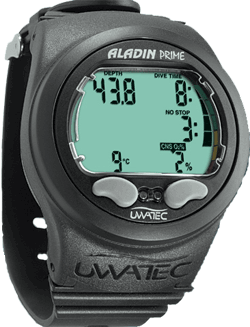

Aladin PRIME represents the core of the Aladin line. Engineered for recreational divers who appreciate detailed, yet easily accessible information, PRIME is the most complete dive computer in its class. It offers great features, like full watch function and a basic choice of adjustments without the need of a PC. New for 2007, Aladin PRIME features adjustable ppO2 between 1.0 and 1.6 bar.

Available in the following configurations:

• Wrist mounted

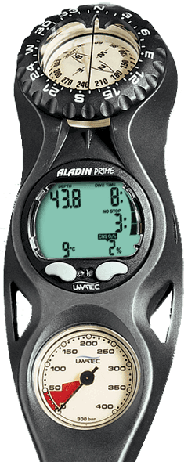

• Console Options (3-in-line console, or 2/1 console) which incorporates analog 400 bar cylinder pressure gauge and FS-1 compass

• Adaptive Algorithm (ZH-L8 ADT). This exclusive UWATEC algorithm increases safety and maximizes bottom time by constantly adjusting the decompression plan during the dive when risk factors like cold water, fast ascents or the potential for formation of micro bubbles are detected.


• Nitrox compatibility 21-50 percent (1 percent  Increments). Ideal for recreational nitrox diving


• Adjustable PPO2 between 1.2 and 1.6 Bar.


• Full Watch Function. Features wake-up alarm, 12 or 24-hour
  mode, date and time zone shift for traveling divers.


• Safety Stop Timer. User activated, it can be set between 1 and 5 minutes for optimal monitoring of your safety stop (default 3 minutes).


• Toggle through Essential Information during Dive Mode. Max depth, temperature, time of day; and activate backlight; entering any surface interval to better plan the next dive.


• Desaturation Reset Function. Useful in dive schools or in rental facilities (via safety code).


• User Replaceable Battery with Sealed Battery Compartment. Protects the computer from improper handling and facilitates battery exchange.

Data Transfer & Memory

• 25 Hours of Profile Storage at 4-second Sampling Rate. Large memory holds more than a week’s worth of diving, high sampling rate preserves all details about the dives.

• Infrared Technology. Wireless data transfer of dive profile information to PC, MAC or PDA via SmartTRAK, JTRAK or TravelTRAK software, respectively.

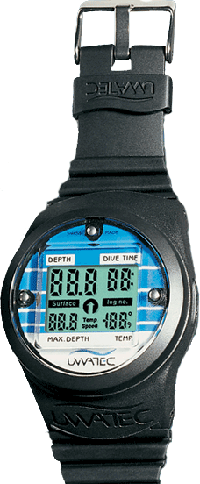

Very practical instrument that incorporates state-of-the-art microchip technology, and several basic dive instruments into a compact information center.

• Includes precision digital depth gauge, dive time, and thermometer: displays actual and maximum depth (up to 330ft), dive time   and temperature (water and air).
• Automatic turn-on and off: it is automatically ready to dive after a self-test
• Surface interval displayed for 24 hours
• Logbook for the last nine dives
• Automatic altitude compensation
• Available as wrist unit
• Variable ascent rates in % and fast ascent warning; variable ascent rate warning (20-66ft/minute) for safer diving.
• Long battery life for over one thousand 1-hour dives.
• Temperature (water and air)

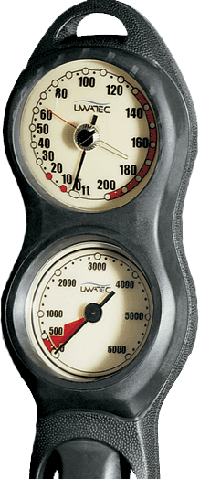

This lightweight and compact boot accommodates the pressure gauge and depth gauge of the U-line family. Great as a primary or back-up instrument for recreational or more experienced divers.

• Ergonomic design and soft features: easy to handle even when wearing thick gloves
• Optional C-1 compass
• Loop on case to attach a safety lanyard

Pressure gauge: scale to 6000psi for use with 3000 and 4350psi tanks

Depth gauge: registers to 200ft and features a maximum depth indicator

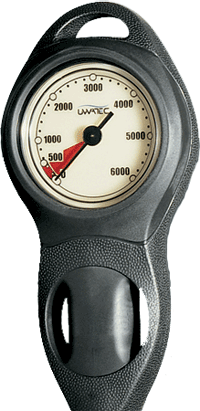

Lightweight, compact, and user-friendly describes this pressure gauge best.
A great primary gauge in a low-profile boot for recreational divers or ideal back-up for experienced divers.

• Ergonomic design and soft features: easy to andle even when wearing thick gloves.
• Loop on case to attach a safety lanyard.
• Optional C-1 compass.

Scale to 6000psi for use with 3000 and 4350psi tanks
